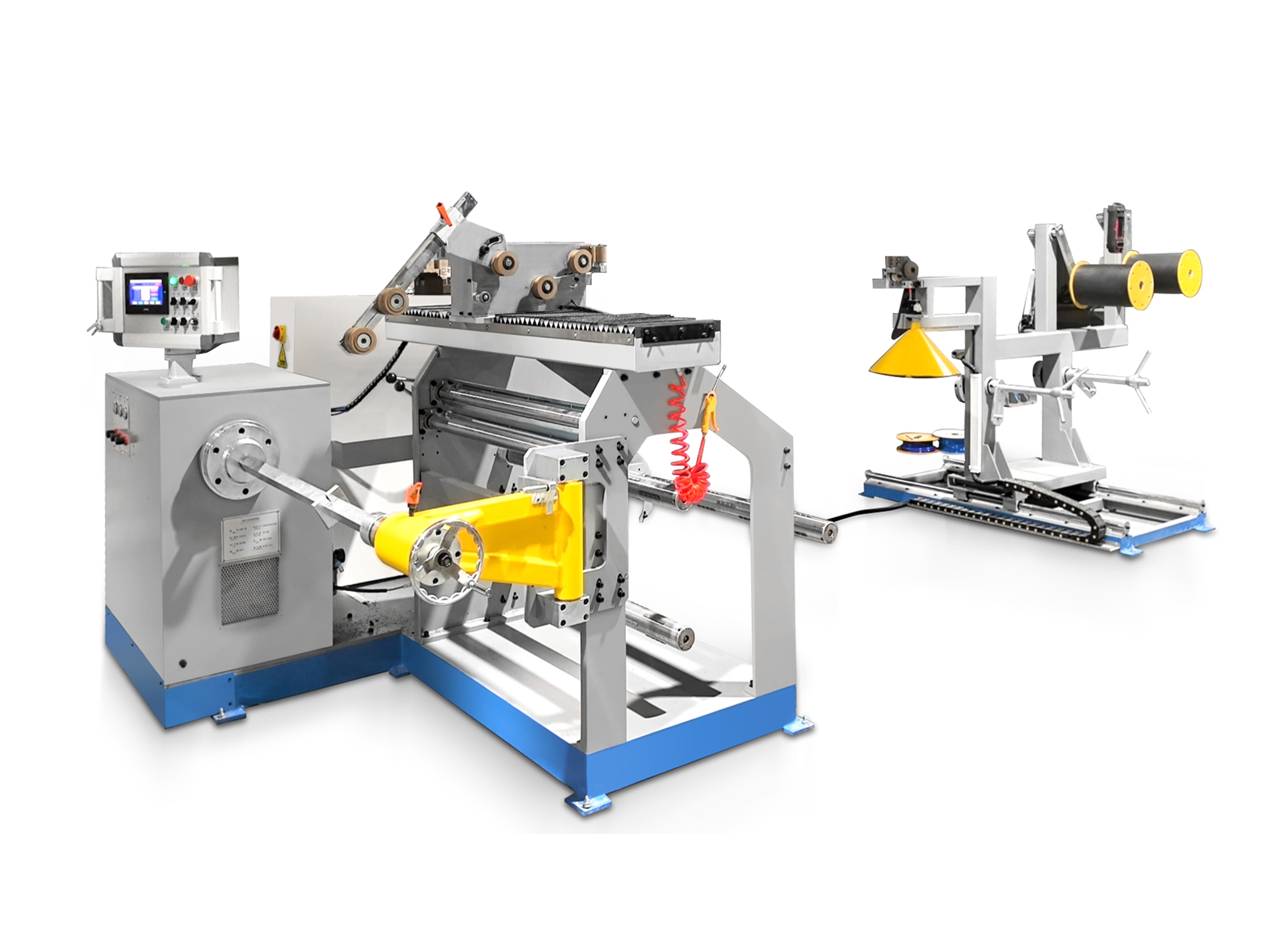

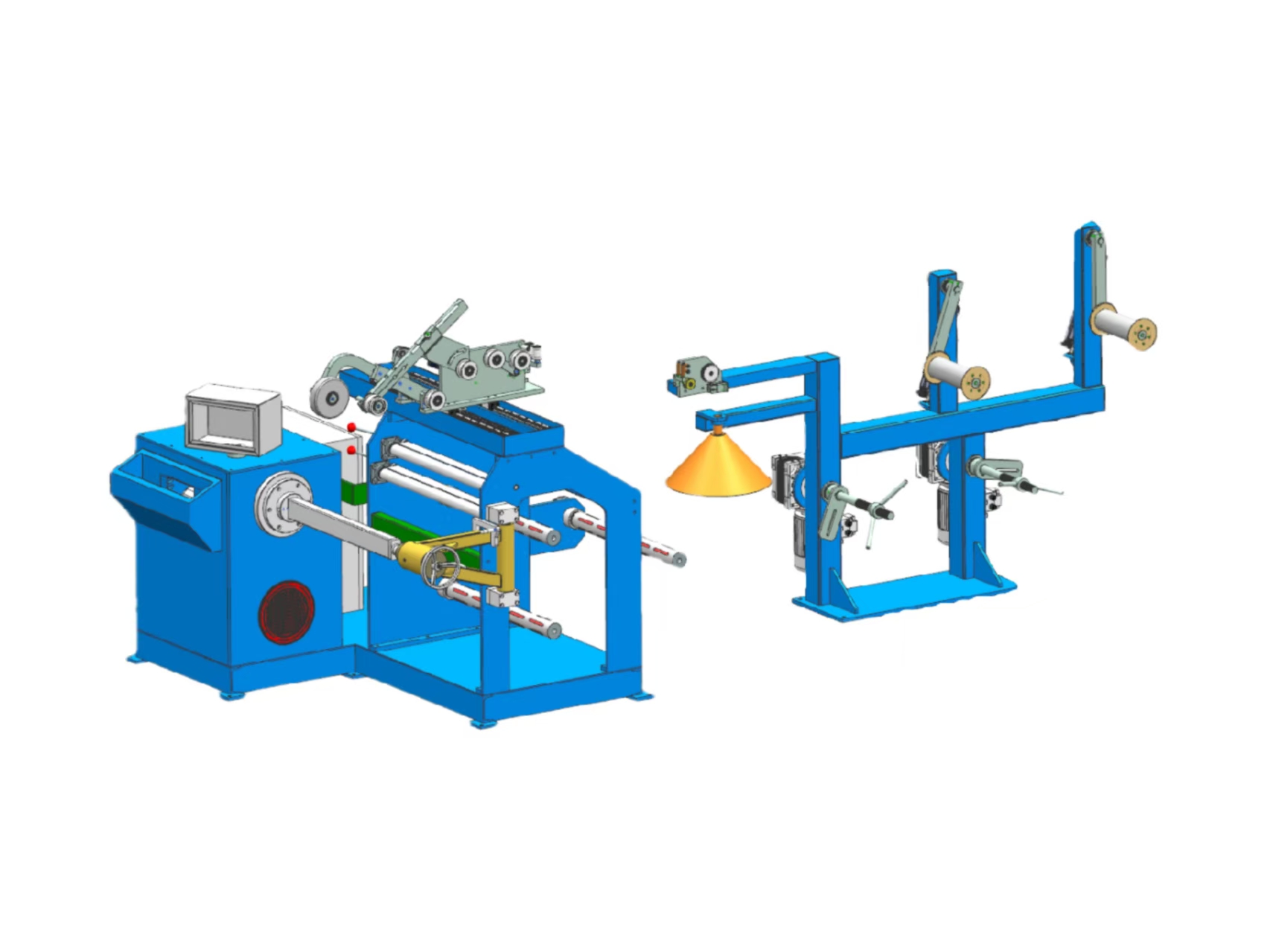

HV Auto-Winding Machine with Constant Tension

Model: GYRXJ-800

Core Positioning

Designed for manufacturing coils in small/medium distribution transformers, instrument transformers, and reactors. Integrates winding, wire alignment, and insulation functions for multi-type precision coil production.

Technical Architecture

- Core Modules: Winding host, automatic wire alignment, layer insulation mechanism

- Drive System: Servo power unit + pneumatic actuators

- Control Center: PLC intelligent control platform

- Auxiliary Unit: Motor-adjustable tension pay-off stand

Key Advantages

1. Intelligent Wire Alignment

   - Servo closed-loop control ensures ±0.1mm alignment accuracy

   - Real-time tension and interlayer gap adjustment

   - Power-off parameter memory protection

2. Dynamic Adaptability

   - Adjustable tension pay-off for diverse wire specifications

   - Rapid process switching via pneumatic system

   - Dual axial/radial compactness control

3. Human-Machine Collaboration

   - Touchscreen displays real-time winding parameters

   - Fault code diagnostics with alarm history

   - Process parameter database management

Functional Highlights

- Multi-process compatibility: Parallel/stacked/cross winding

- Wire protection: Guide rollers minimize surface damage

- High-efficiency mode: 8-hour continuous stable operation

Technical Specifications

Coil Processing

Center Height: 850mm

Axial Length: 850mm

Max Alignment Width: 0-800mm

Coil Outer Diameter: Φ700mm

Coil Inner Diameter: Φ130mm

Workpiece Weight: 500kg

Winding Shaft: 50×90×900mm (customizable)

Wire Specifications

Flat Wire (Max): 3×12mm

Enameled Round Wire: Φ0.5–3.0mm

Winding Machine

Working Torque: >600N·m

Power: 4kW

Speed Control: Frequency-converter stepless

Winding Speed: 0-200rpm

Max Turns Setting: 9999.9

Counting Method: Touchscreen

Counting Accuracy: 0.1mm

Operation Modes: Manual/Auto

Layer Insulation

Effective Shaft Length: 800mm

Material Roll ID: Φ76mm

Material Roll OD: Φ400mm

Tension Method: Pneumatic (adjustable)

Quantity: 3 sets

Wire Pay-Off Systems

Round Wire Pay-Off:

Tension Method: Mechanical (adjustable)

Quantity: 1 set

Flat Wire Pay-Off:

Tension Method: Frequency-converter motor

Pay-Off Shaft: Φ36mm

Material Roll OD: <Φ700mm

Buffer Units: 2 sets

Shaft Quantity: 2

Control Method: Touchscreen

Color: RAL5012 Light Blue (customizable)

Power Supply: 10kW total, 3-phase AC380V/50Hz

Compressed Air: 0.6MPa, 0.2m³/min consumption

Weight: ~2 tons
